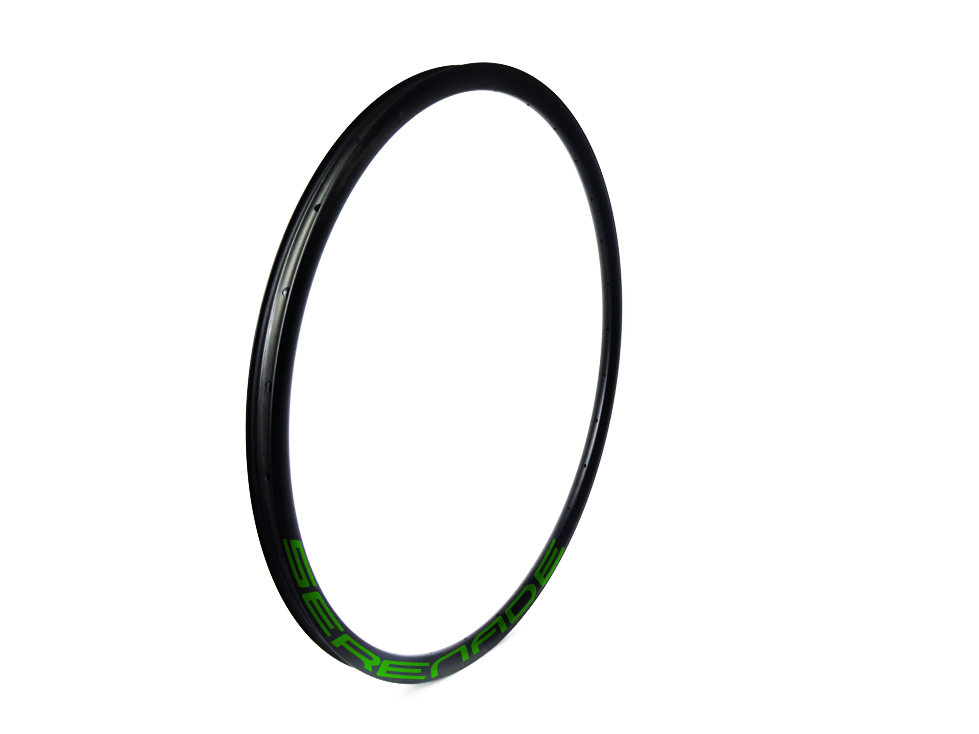

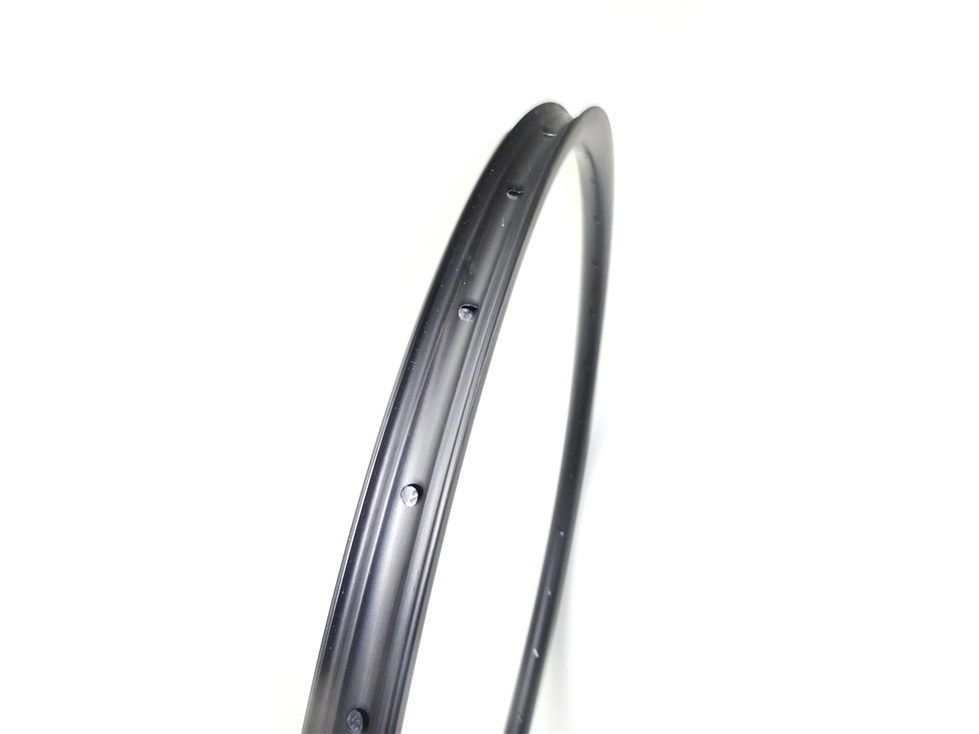

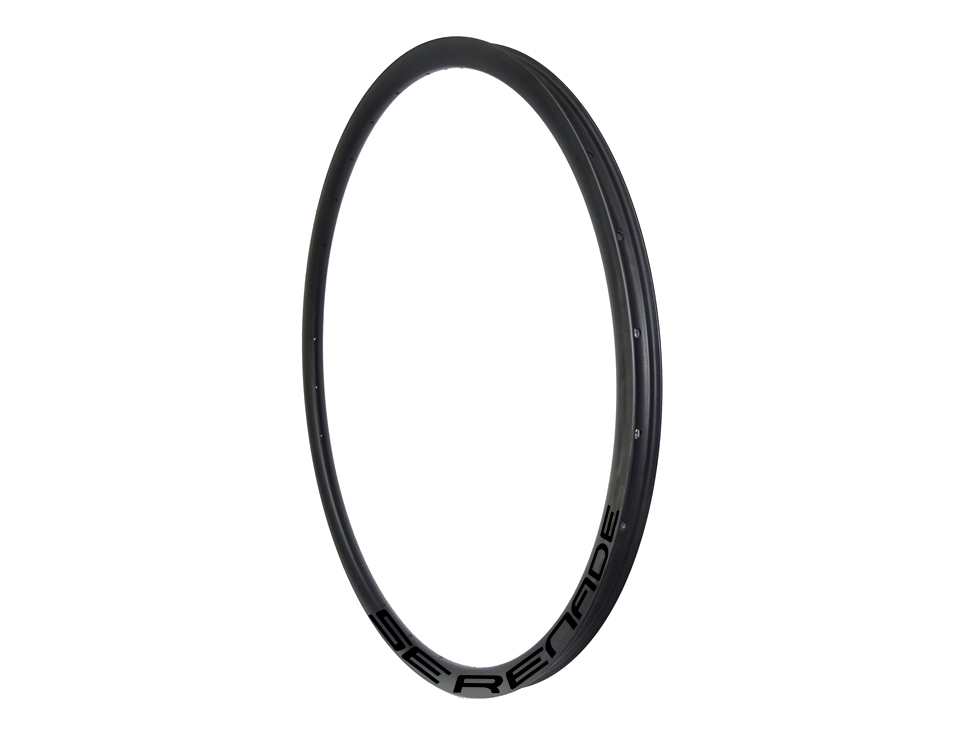

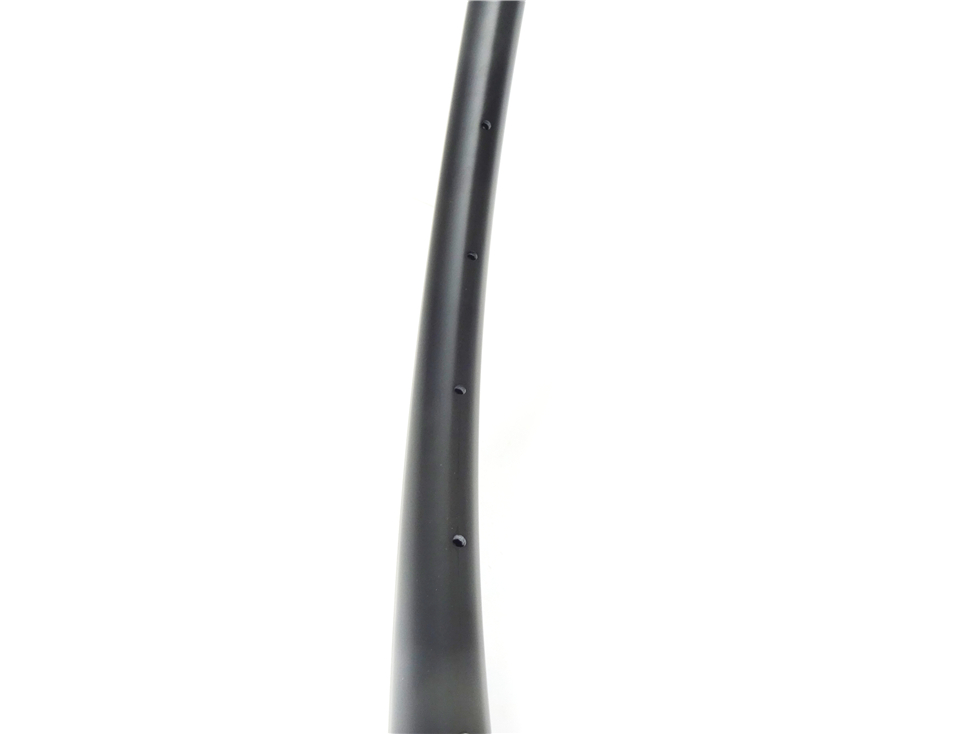

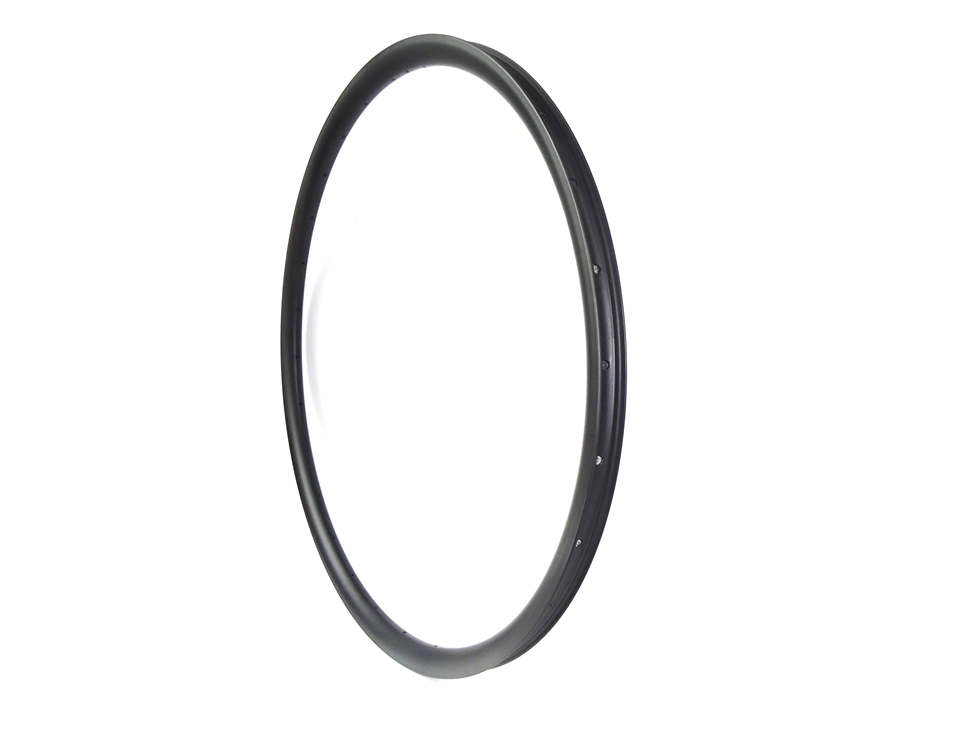

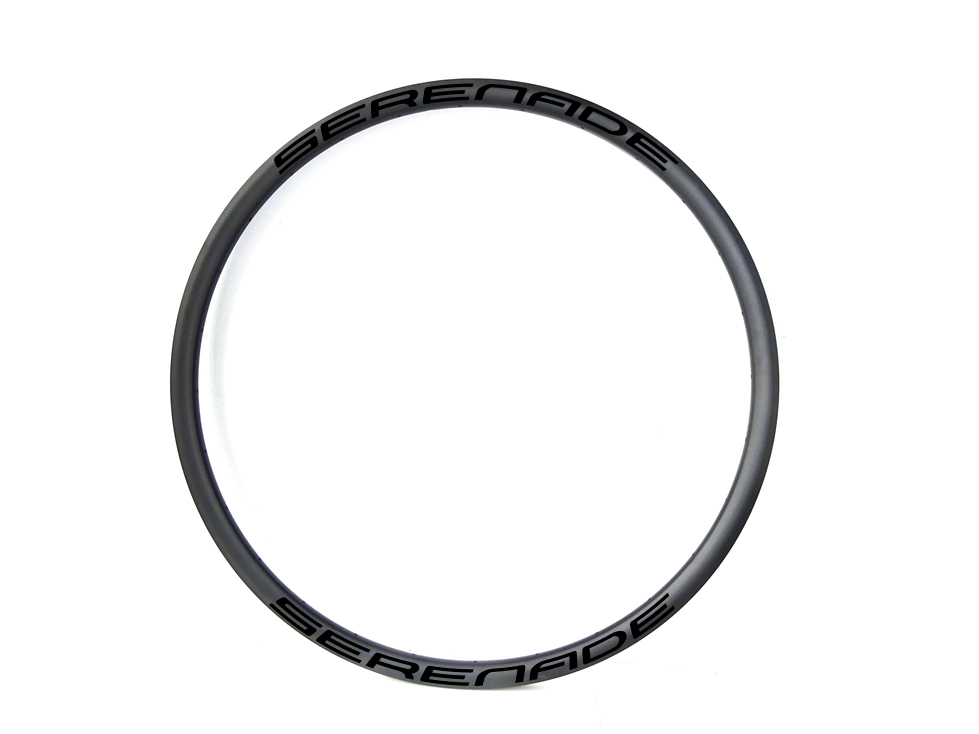

Asymmetric hook-less rims carbon 29er light bike rim 28mm wide XC lighter version TME923 |
| |
Model : TME923 |
|
Size:29ER |
| |
Rims type : Beadless and tubeless compatible |
|
ERD: 594 mm |
| |
Material : T800 + T700 carbon fibers |
|
Width: 23/28 mm |
| |
Warranty : 2 Years |
|
Depth : 23 mm |
| |
Spoke Hole Dia.: 2.3mm, 4.5mm |
|
Weight : Standard 330±10g |
| |
Valve Hole Dia.: 6.5mm (Presta) |
|
Assembly Hole Dia.: 8.0mm |
| |
Rims offset: 2.5mm |
|
Hole count: 18,20,24, 28, 32,36 |
| |
Weave : ud / 3k / 12k |
|
Application: XC |
| |
Tire Size: 1.7" ~ 2.15" |
|
Max Spoke Tension: 130kgf |
| |
Weight Limit: 100kg |
|
Max Tire Pressure:
≤60psi recommended |
| |
|
|
|
 |
| |
 |
| tubeless rim bead |
 |
| |
 |
| |
 |
| |
|
|
|
 |
| |
|
|
|
| |
Characteristics : |
|
|
| |
1. 2.5mm offset lightweight design. |
|
4.In normal , the rims without logo . But we can painting your own logo . |
| |
2 .This model can be use for 29er . |
|
5.This rim will give you a more reliable tubeless fit. |
| |
3.mtb xc used ,Reduce weight without affecting performance. |
|
|
| |
|
|
|
